Curved Stairlifts

The Acorn 180 Curved Stairlift
Welcome to one of the most innovative stairlifts in the world.

Designed from the ground-up for any curved staircase, this curved stairlift offers a comfortable and reliable ride. The advanced self-levelling carriage moves along the modular rail system, coming to a soft stop with ease.

With its low running costs, it even operates through a power cut. The sleek, smooth and modern rail system is unique to this stairlift. There is no waiting weeks to have an expensive rail made for your home. Utilising the FastTrack® system, it can be installed in a matter of days with no mess and no fuss.

To learn more about our curved stairlift prices and installation, contact us to get your free stairlift quote from Acorn Stairlifts or simply for more advice.

Stairlift Hinged Rail Option!

Automatic powered hinges can be fitted when there is an opening or doorway at the foot of the stairs. An automatic powered hinged rail solves this problem. Acorn Stairlifts have all the features you need, and none you don't!

View Technical Details

Why not request your free brochure today?

Safety and Convenience

  1. Folding foot rest
  2. Seat belt
  3. Diagnostic display
  4. Backup battery
  5. Remote control

Curved Stairlift Features

  1. FastTrack®, our unique FAST installation service.
  2. Installing our curved stairlift requires no structural changes to your home
  3. Affordable and reliable with low running costs
  4. Slimline and folds away conveniently when not in use
  5. Buy direct from the manufacturer and save

Curved Stairlift Installation

All Acorn stairlifts — including our curved stairlifts — fit directly to the staircase, not the wall, so installation is quick and mess-free.

FREE Curved Stairlift Quote

Our comprehensive home survey is completely free and you're under no obligation to buy!

FREE Stairlift Home Survey
FREE Stairlift Quote
NO Pressure Selling
NO Need for Repairs or Redecoration

Contact us for FREE no obligation advice and speak to one of our friendly experts.

TOLL-FREE: 0800 000 661

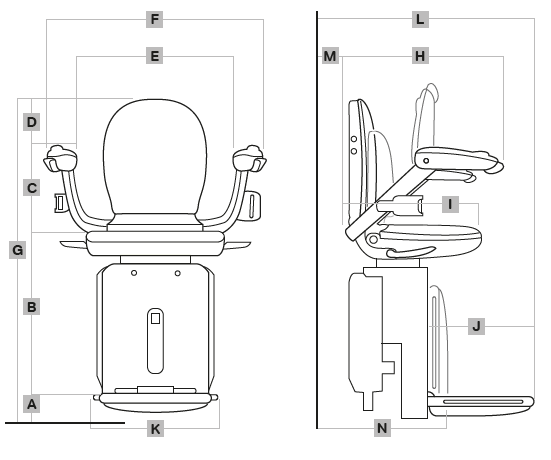

Acorn 180 Stairlift Measurements and Technical Information Image Acorn 180 Stairlift Measurements and Technical Information Image Acorn 180 Stairlift Measurements and Technical Information Image

Angles

Min
Max 58°

Maximum Rail Length

30 metres 1181 inches
Dimensions mm inch
A Floor to top of footrest 50 2
B Top of footrest to top of seat 485 19
C Top of seat to top of arms 245 9.75
D Top of arms to top of seat back 195 7.75
E Width between armrests 480 19
F Overall width including seatbelt 620 24.5
G Overall height 975 38.25
H Length of arms from seat back 460 18
I Length of seat base from seat back 435 17
J Length of footrest 360 14.25
K Width of footrest 375 14.75
L Front of footrest to stringer 640 25.25
M Back of seat to stringer 35 1.5
N Folded width 335 13.25
O Minimum width required to swivel at top 690 27.25
P Distance from front of rail to stringer 180 7
Q Height of leg 125 (min) 650 (max) 5 (min) 25.5 (max)
R Front of drop nose to first stair 450 17.75

This stairlift is manufactured to match or exceed the:

  • ISO 9386-2:2000 - Worldwide Standard for Stairlifts
  • CE Mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • BS EN 81-40:2008 - European Safety Standards
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
Specifications
Motor output speed No greater than 0.15 meters per second
Method of drive Rack and Pinion
Motor Power 0.375KW
Carriage Power Supply 29.6v D2C batteries
Maximum capacity 120kg
Power supply input range 100-240v AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
