Outdoor Stairlifts: Costs & Installation

Open up and enjoy your outdoor space with Acorn Stairlifts.

Do you have a steep outdoor staircase that is difficult to walk up? Acorn Stairlifts do not need to be limited to your indoor stairs; our outdoor stairlifts are the perfect mobility aid to give you access to those outdoor spaces you love or have limited access to.

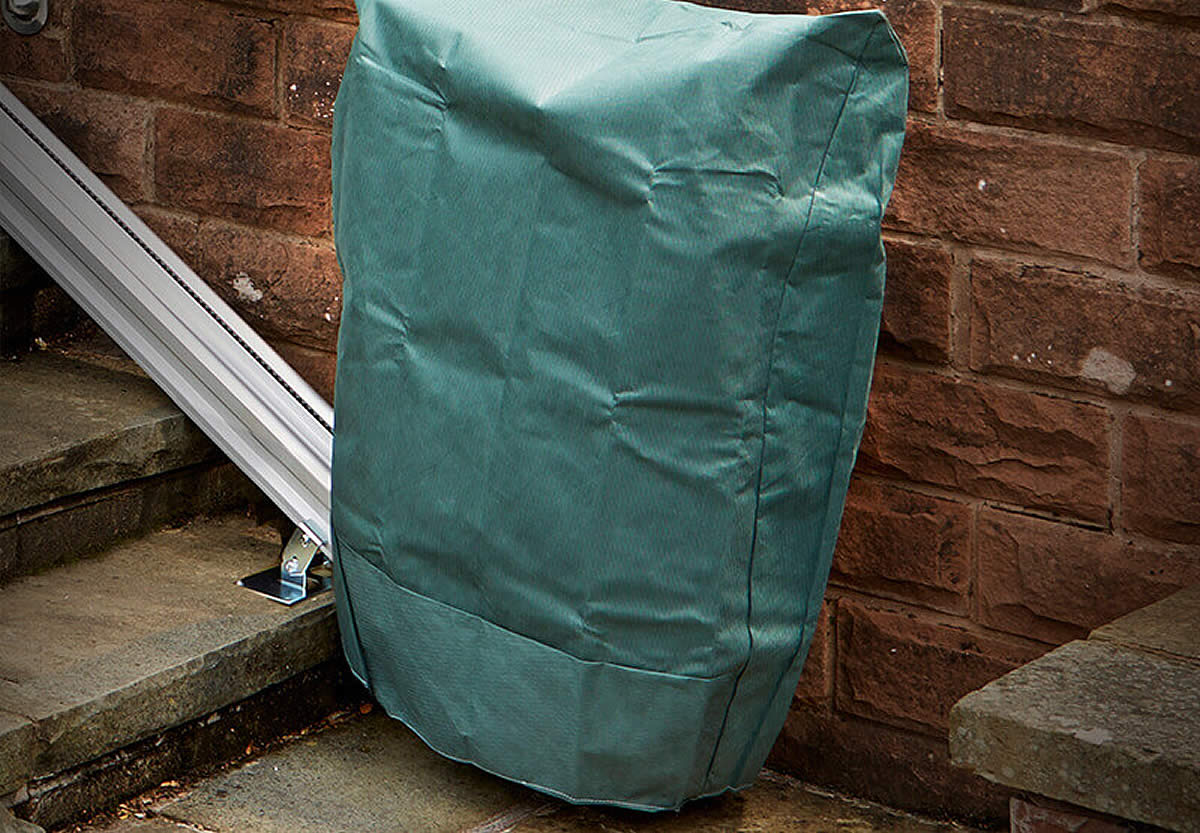

Our 130 outdoor stairlift comes with all the features that can be found on our straight stairlift. For extra protection, it comes with a weather resistant outdoor cover.

View Technical Details

Why not request your free brochure today?

Outdoor Stairlift Features

  1. Fits quickly and easily to the stairs, not the wall.
  2. Stairlift installation requires no major structural changes.
  3. Our stairlift stops automatically if it meets an obstruction.
  4. Slimline and folds away conveniently when not in use.

Outdoor Stairlift Installation

All Acorn stairlifts fit directly to the staircase, not the wall, so installation is quick and mess-free.

FREE Outdoor Stairlift Quote

Our comprehensive home survey is completely free and you're under no obligation to buy!

FREE Stairlift Home Survey
FREE Stairlift Quote
NO Pressure Selling
NO Need for Repairs or Redecoration

Contact us for FREE no obligation advice and speak to one of our friendly experts.

TOLL-FREE: 0800 000 661

Acorn 130 Stairlift Measurements and Technical Information

Angles

Standard Indoor 130

Short seat post 40-55°
Standard seat post 29-55°
Tall seat post 23-55°

Power Swivel 130

Standard seat post 36-55°
Tall seat post 23-55°

Outdoor 130

Standard seat post 27-55°

Maximum Rail Length

10 metres 394 inches

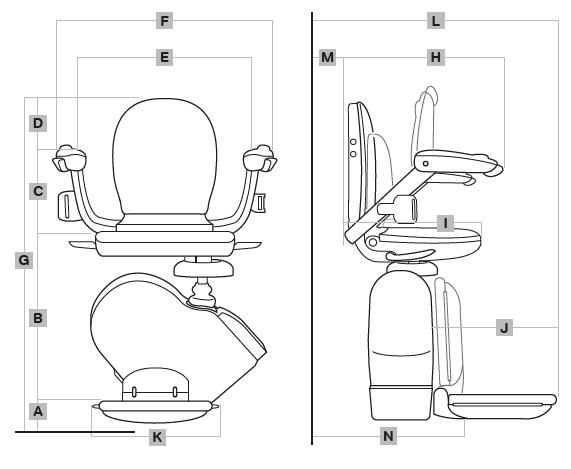

Dimensions mm inch
A Floor to top of footrest 95 3.75
B Top of footrest to top of seat (Short) (Tall) 445 (410) (505) 17.5 (16.25) (19.75)
C Top of seat to top of arms 250 9.75
D Top of arms to top of seat back 190 17.5
E Width between armrests (Wide arm version) 445 (495) 17.5 (19.5)
F Overall width 605 23.75
G Overall height to floor 980 38.5
H Length of arms from seat back 470 18.5
I Length of seat base from seat back 435 17
J Length of footrest 325 12.75
K Width of footrest 310 12.25
L Front of footrest to stringer 570 22.5
M Back of seat to stringer 13 0.5
N Folded width 310 12.25
O Minimum width required to swivel at top 670 26.25
P Distance from front of rail to stringer (Wide arm version) 215 (240) 8.5 (9.5)

This stairlift is manufactured to match or exceed the:

  • ISO 9386-2:2000 - Worldwide Standard for Stairlifts
  • CE Mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • BS EN 81-40:2008 - European Safety Standards
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
Specifications
Motor output speed No greater than 0.15 metres per second
Method of drive Rack and Pinion
Power supply 24v DC batteries
Motor Power 0.25KW
Maximum capacity 127kg
Maximum capacity HD version 159kg
Power supply input range 50-60Hz, 120-240V AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
